L-Fine 4D 16-Line 4x360° Green Laser Level Complete Kit

L-Fine 4D 16-Line 4x360° Green Laser Level Complete Kit

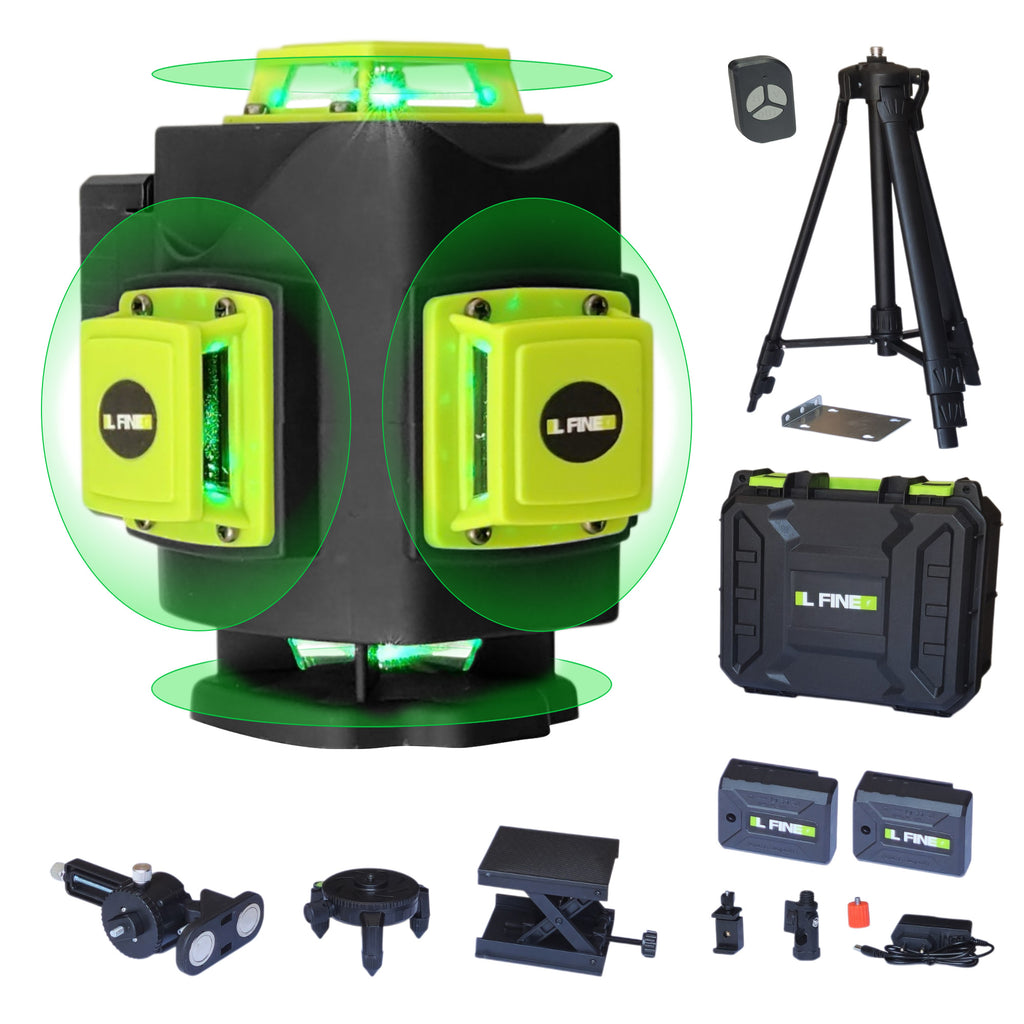

The L-Fine 4D 16-Line Laser Level projects four complete 360° green laser planes for accurate levelling, alignment, squaring and layout work. The complete kit includes two rechargeable batteries, a tripod, remote control, protective carry case and multiple mounting accessories.

Key Features

• 4 x 360° LASER COVERAGE – Projects four full 360° green laser planes, comprising two horizontal and two vertical planes. Select the required lines independently for levelling, alignment, squaring and layout work.
• SELF-LEVELLING WITH MANUAL TILT MODE – Automatically levels within approximately ±3°. When positioned outside the self-levelling range, the laser alerts the user. Manual mode allows angled reference lines to be projected when required.
• BRIGHT 515NM GREEN LASER – The highly visible green laser provides a working range of up to 20 metres under suitable lighting conditions. Choose between bright and dim settings or adjust through 10 incremental brightness levels.
• TWO RECHARGEABLE BATTERIES – Includes two 2400mAh rechargeable battery packs, each providing approximately three hours of use depending on the selected laser planes and brightness. The laser can also operate while connected to the charger.
• COMPLETE MULTI-MOUNT KIT – Supplied with a tripod, lifting platform, 360° fine-adjustment base, wall-mounting accessories, remote control and protective carry case for flexible positioning across different projects.

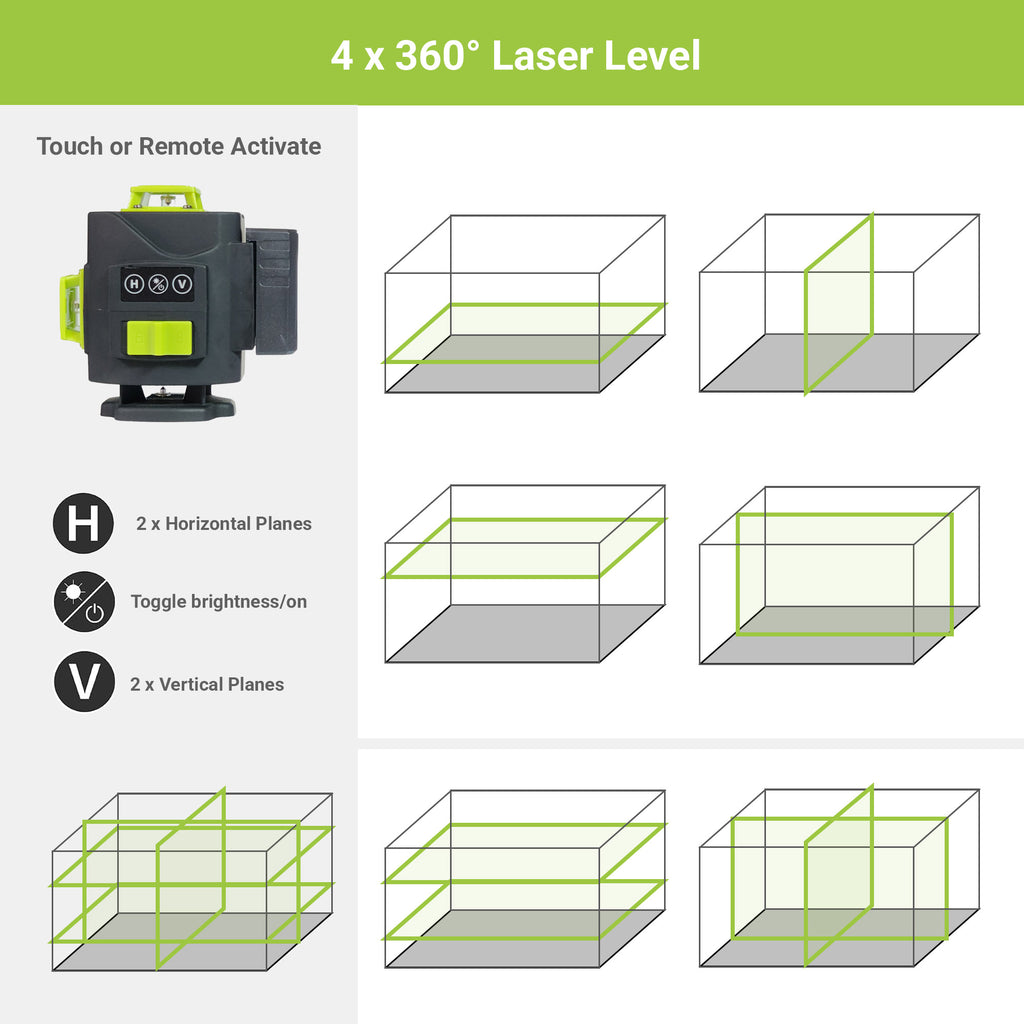

4 x 360° Laser Coverage

The unit projects four complete laser planes:

• 2 x 360° horizontal laser planes
• 2 x 360° vertical laser planes
• 16-line green laser coverage
• Independent horizontal and vertical line selection

Select only the laser planes needed for the job or activate all four planes for comprehensive alignment across floors, walls and ceilings.

Self-Levelling with Manual Tilt Mode

With the pendulum unlocked, the laser automatically levels itself within approximately ±3°. If the unit is positioned outside its self-levelling range, the laser lines flash to alert the user.

For angled or sloped reference lines, move the slider into the locked/off position and press and hold the centre D/S button for approximately five seconds to activate manual tilt mode.

Manual tilt mode is useful for stairs, handrails, decorative installations and other projects where a deliberately angled reference line is required.

Bright 515nm Green Laser

The 515nm green laser provides a working range of up to 20 metres under suitable lighting conditions. The adjustable output allows the brightness to be adapted to the working environment.

• Quick-press the centre D/S button to switch between bright and dim output.
• From the dim setting, press and hold the H button for approximately five seconds to begin increasing the brightness.
• Continue holding the H button until the desired brightness is reached.
• From the bright setting, repeat the process to reduce the brightness.
• The brightness cycles through 10 incremental levels.
• The unit beeps once when the maximum or minimum level is reached.

Touch Control Panel

• H button: Quick-press to select or change the horizontal laser planes.
• V button: Quick-press to select or change the vertical laser planes.
• Centre D/S button: Controls bright and dim output and activates manual tilt mode when the pendulum is locked.
• Green slider: Move left to switch on and unlock the self-levelling mechanism. Move right to switch off and lock the mechanism for transport.

A remote control is also included, allowing the laser functions to be operated when the unit is mounted away from the user.

Two Rechargeable Battery Packs

The kit includes two rechargeable 2400mAh battery packs. Each battery provides approximately three hours of working time, depending on the brightness setting and number of active laser planes.

The laser can also operate while connected to the charger. The charger indicator displays red while charging and changes to green when charging is complete.

Suitable for Multiple Applications

• Wall and floor tiling
• Bricklaying and construction
• Shelving installation
• Cabinet and kitchen installation
• Interior wall finishing and panelling
• Ceiling installation
• Partition and drywall layout
• Electrical and fixture alignment
• General construction and renovation work

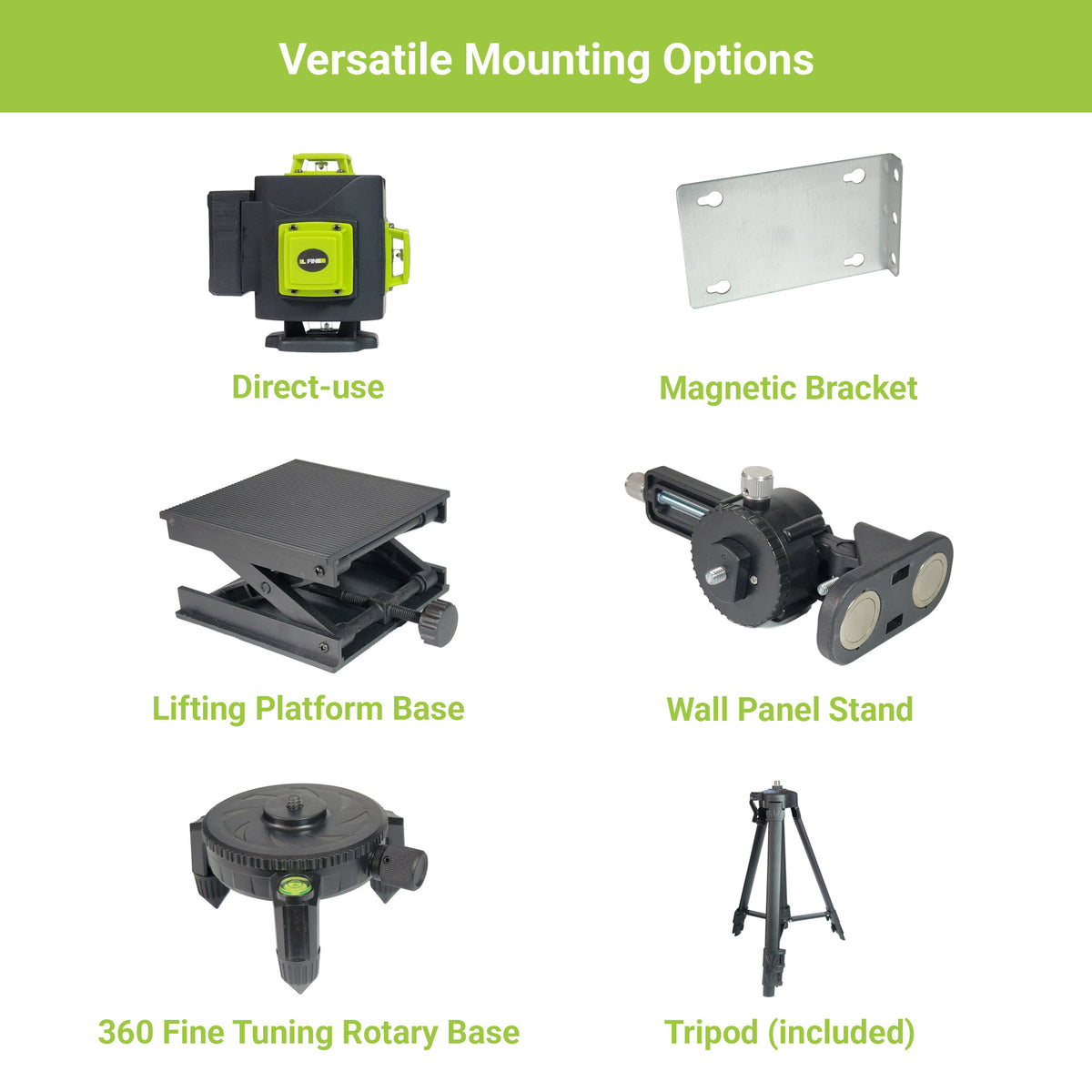

Versatile Mounting Options

Position the laser directly on a stable surface or use the included mounting accessories to adjust its height, angle and working position.

• Tripod
• Lifting platform base
• 360° fine-adjustment rotary base
• Wall-mounting stand
• Metal mounting plate
• Mounting adapters and connectors

Technical Specifications

• Brand: L-Fine
• Model/SKU: LLX-360-04-4d-16line
• Configuration: 4D 16-line
• Laser coverage: 4 x 360°
• Horizontal planes: 2
• Vertical planes: 2
• Laser colour: Green
• Laser wavelength: 515nm
• Laser classification: Class 2
• Working range: Up to 20m under suitable conditions. great distances possible but under varying conditions.
• Self-levelling range: Approximately ±3°
• Accuracy: Approximately ±1mm at 5m
• Brightness adjustment: 10 incremental levels
• Battery packs: 2 x 2400mAh rechargeable batteries
• Operating time: Approximately 3 hours per battery
• Powered operation: Can operate while connected to the charger
• Working temperature: -10°C to 40°C
• Manual tilt mode: Yes
• Remote control: Included
• Transport lock: Yes

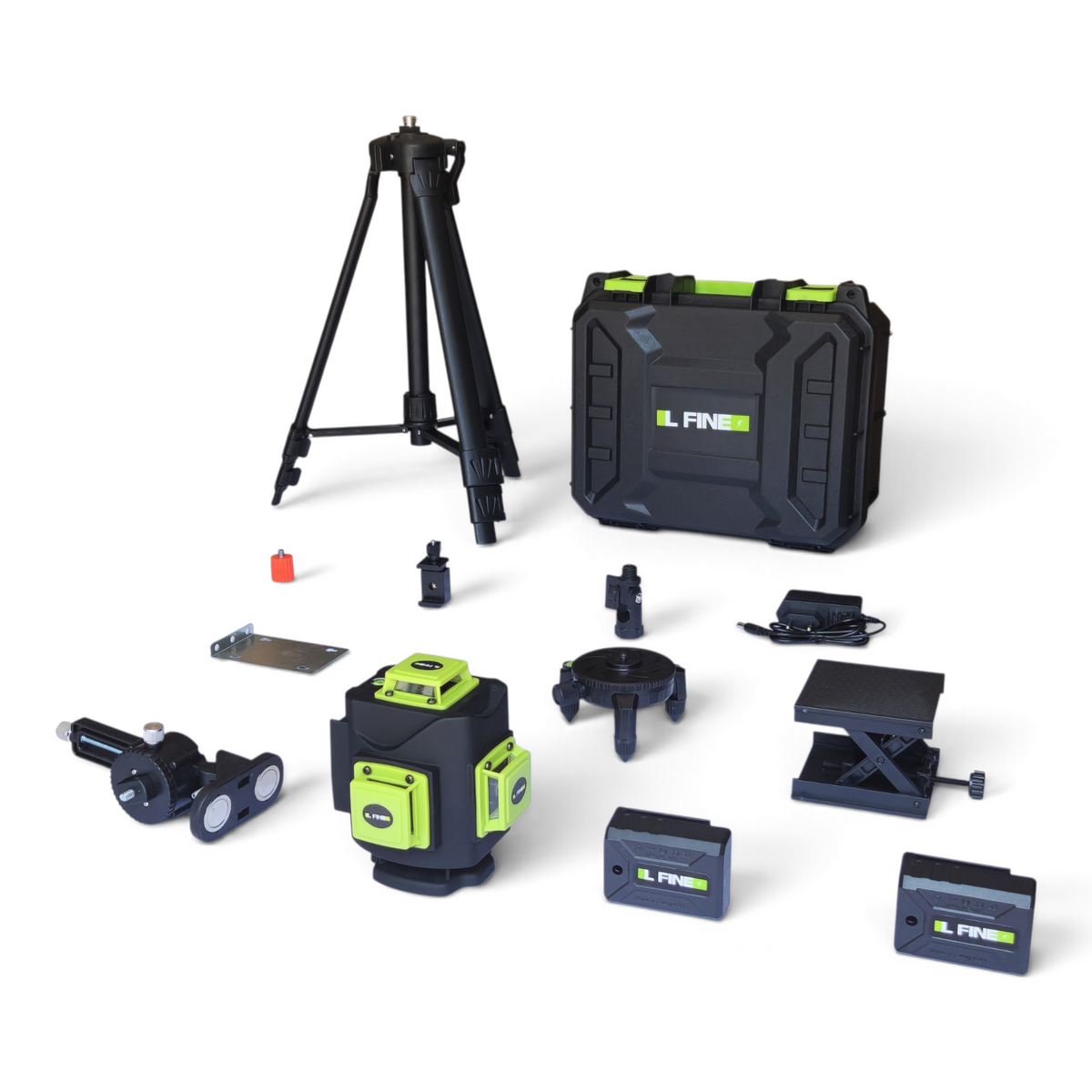

What’s Included

• 1 x L-Fine 4D 16-Line Green Laser Level
• 2 x 2400mAh Rechargeable Battery Packs
• 1 x Charger
• 1 x Remote Control
• 1 x Tripod
• 1 x Lifting Platform Base
• 1 x 360° Fine-Adjustment Rotary Base
• 1 x Wall-Mounting Stand
• 1 x Metal Mounting Plate
• Mounting Adapters and Connectors
• 1 x Protective Carry Case
• 1 x User Manual

Care and Safety

This is a Class 2 laser product. Do not stare directly into the laser beam or deliberately point it towards another person’s eyes.

Move the green slider to the locked/off position before transporting or handling the unit. Avoid dropping the laser level or exposing it to heavy pressure, collisions, violent shaking or excessive vibration, as this may damage the internal mechanism.

Store the unit in a dry, ventilated location. Remove the battery when storing the product for an extended period, and clean the laser windows carefully using a clean, soft cloth.

```
